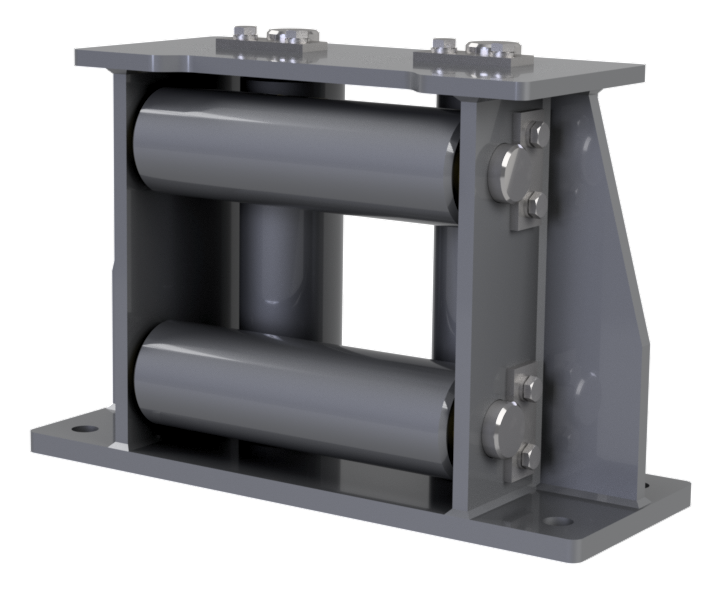

Four Roller Fairleads

Bear Equipment Four Roller Fairleads

The 4R Series Four Roller Fairleads are engineered for reliable multi-directional cable guidance. Heavy-duty steel rollers with greasable bronze bushings reduce friction and rope wear. Designed to handle severe angular pulls and the harshest environments, the 4R Series is the ultimate choice for cable routing.

Specifications

Application:

Directional Rope Routing

Construction:

Steel Rollers / Stainless Shafts / Welded Frame

Roller Diameter:

2-1/2" - 6"

Allowable Rope:

1/2" - 1-1/4"

Working Load

14,000 - 90,000 lbs

Mounting

Bearings

Coating:

Advantages of Four Roller Fairleads

Reliable Safety

The 4R Four Roller Fairlead utilizes a simple, yet robust design to offer reliable cable routing.

High Versatility

Multiple mounting options and strategic frame cutouts make the 4R Series Fairleads a versatile choice for multi-angle cable guidance

High Working Load

The 4R Series Fairleads are built with welded steel frames, heavy walled rollers, and oversized shafts to exceed the breaking strength of the appropriately sized wire rope.

Corrosion Protection

Stainless steel shafts and hardware along with a durable powdercoat finish make the 4R Series the ideal cable routing choice for harsh environments.

Diagram of a Four Roller Fairlead

Product Table

Simply add any item to your cart and complete the Request for Quote (RFQ) form. A member of our sales engineering team will respond promptly with pricing and availability.

Scroll Sideways on Your Mobile Device to View Product Data and the RFQ Button.
Product Tables Are Easier To See on Desktop Computers.

Model	WLL (LBS)	Max Rope Diameter (IN)	Roller Diameter (IN)	Opening Size (IN)	Height to Opening (IN)	Overall Length (IN)	Overall Width (IN)	Overall Height (IN)	Bolt Patt Length (IN)	Bolt Patt Width (IN)	MT Bolt Diameter (IN)	RFQ CART
4R-25	14000	1/2	2-1/2	3x3	3-7/16	5-1/2	15	10-1/8	3-1/2	13	5/8	Add to RFQ
4R-40	28000	3/4	4	4x4	5-7/16	9	22	14-5/8	6-1/2	18-1/2	3/4	Add to RFQ
4R-60	90000	1 1/4	6	4x4	8-1/2	13-3/4	31-1/2	21	8-3/4	26-1/2	1	Add to RFQ

Disclaimer: Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.

4R Series Four Roller Fairlead Data Sheet
