GW Hand Winches
About GW Hand Winches
The GW Series worm gear hand winch is a robust and versatile tool for lifting or pulling. Available in a variety of working loads, it is designed to meet diverse application needs. Its automatic braking and double ratchet system ensure safety and reliability, making the GW series a dependable hand winch.
Specifications
Application:
Pulling, Lifting
Material:
Steel
Working Load Limit:
550 -11,000 lbs
rope size:
3/16" - 3/4"
Drive:
Worm w/ 2 Speed Spur
Brakes:
Self Locking Worm with Load Pressure Brake
Coating:
Paint
Mounting
Wall / Console
Advantages of GW Series Hand Winches
Reliable Safety
The GW Series utilizes worm gearing, load pressure brake, and double ratchet system to securely hold the load in any position.
High Versatility
The GW hand winch offers versatile functionality, suitable for wall or floor mounting, lifting or pulling, and both manual and power tool operation.
Two-Speed Operation
Higher capacity winches are equipped with Hi and Lo speed gearing for increase ease when lifting heavy loads.
High Efficiency Bearing
Winch utilizes needle bearings for minimized friction, reduced cranking effort, smooth motion, and power tool operation.
Diagram of a GW Hand Winch
Download the GW Series Hand Winch Data Sheet
Click on the link to download data sheet for this product type. You will be asked for your contact information and we will immediately email you the file to browse.
Product Table
Simply add any item to your cart and complete the Request for Quote (RFQ) form. A member of our sales engineering team will respond promptly with pricing and availability.
Scroll Sideways on Your Mobile Device to View Product Data and the RFQ Button.
Product Tables Are Easier To See on Desktop Computers.
Model | WLL (LBS) | Rope Diameter (IN) | Rope Storage (FT) | Overall Length (IN) | Overall Width (IN) | Overall Height (IN) | Bolt Patt Length (IN) | Bolt Patt Width (IN) | MT Bolt Diameter (IN) | Drum Diameter (IN) | Drum Width (IN) | RFQ CART |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
GW550 | 550 | 3/16 | 285 | 9-3/8 | 5-11/16 | 14-3/8 | 7-1/2 | 3-15/16 | 1/2 | 1-7/8 | 4-1/8 | |
GW1100 | 1100 | 1/4 | 240 | 10-9/16 | 6-5/16 | 15-1/2 | 8-3/4 | 4-1/2 | 1/2 | 2-3/4 | 5-5/16 | |
GW2200 | 2200 | 3/8 | 195 | 11-7/8 | 7-11/16 | 17-5/16 | 10 | 5-9/16 | 5/8 | 4 | 6-3/8 | |
GW3300 | 3300 | 7/16 | 120 | 11-7/8 | 9-13/16 | 17-3/4 | 10 | 7 | 5/8 | 4 | 6-3/8 | |
GW4400 | 4400 | 1/2 | 190 | 16-1/8 | 12-1/4 | 27-3/4 | 14-3/16 | 7-3/4 | 7/8 | 5-1/4 | 7 | |
GW6600 | 6600 | 5/8 | 225 | 17-1/8 | 15 | 32 | 15-3/16 | 9-7/8 | 7/8 | 6-5/8 | 8 | |
GW11000 | 11000 | 3/4 | 190 | 17-1/8 | 18-3/8 | 33-3/8 | 15-3/16 | 12-7/16 | 7/8 | 8-5/8 | 7-7/8 |
Disclaimer: Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
GW Options

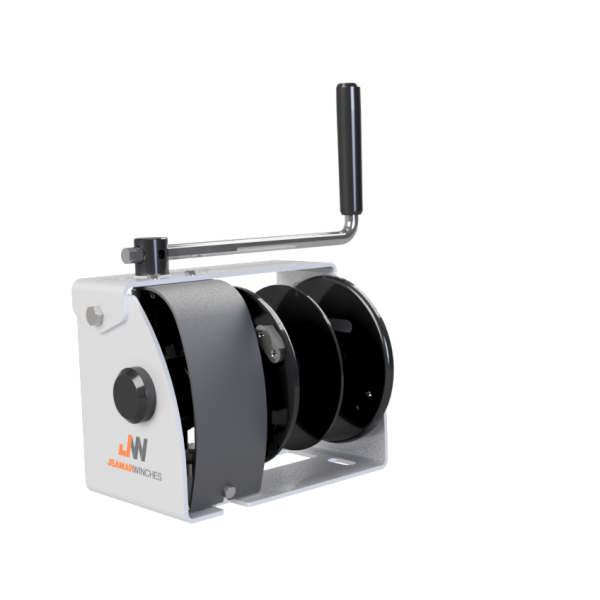

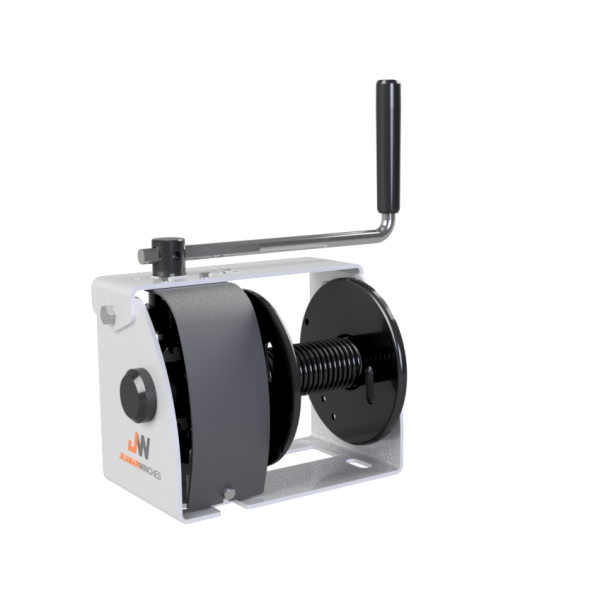

The GW Series drum can either be grooved or divided depending on application needs. A “G” option would add precision machine grooving in the winch drum to reduce fleeting distance requirement. A “F” option would add a flange to the center of the winch drum to allow two winch cables to be operated on the same drum.
