GS Hand Winches

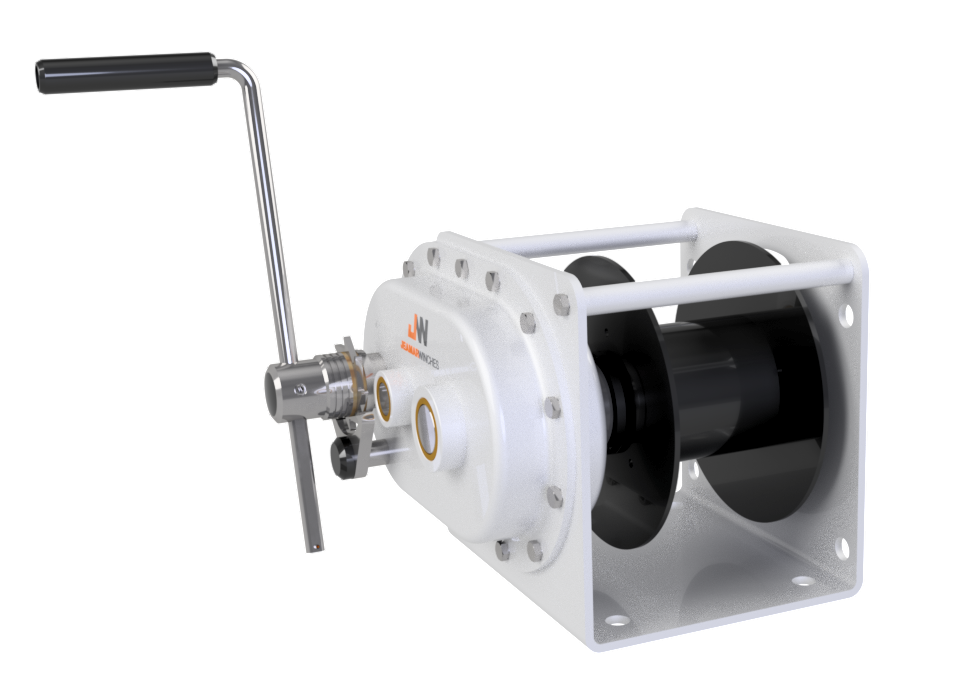

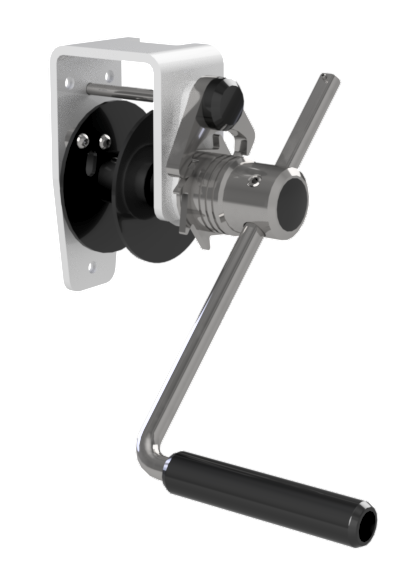

The GS series has slightly different appearances over the load ratings as seen in the pictures above.
About GS Hand Winches
The GS Series is a wall or console mounted, spur gear hand winch for lifting or pulling. Designed for cable exit upwards in wall mount, ideal for use with block system in a lifting application. Console mounting allows cable exit in any horizontal direction, ideal for a pulling application. Its automatic braking and double ratchet system ensures safety and reliability, making the GS series a safe and dependable hand winch.
Specifications
Application:
Pulling, Lifting
Material:
Steel
Working Load Limit:
275 - 2200 lbs
rope size:
1/8 - 1/2"
Drive:
Spur / Direct
Brakes:
Load Pressure Brake with Double Ratchet
Coating:
Paint
Mounting
Wall / Console
Advantages of GS Hand Winches
Reliable Safety
The GS Series utilizes load pressure brake and double ratchet system to securely hold the load in any position.
High Versatility
Wall mounting or console mounting enables the rope to exit at any direction that best suits the application.
High Strength to Weight Design
Constructed from sheet steel housing/side frames, the GS offers an ideal blend of strength and lightweight design.
Speed to Load Adjustability
Handle length can be adjusted to either be shortened to spool faster under light loads or lengthened to reduce hand force on heavier loads.
Diagram of a GS Hand Winch
Product Table
Simply add any item to your cart and complete the Request for Quote (RFQ) form. A member of our sales engineering team will respond promptly with pricing and availability.
Scroll Sideways on Your Mobile Device to View Product Data and the RFQ Button.
Product Tables Are Easier To See on Desktop Computers.
Model | Type | WLL (LBS) | Rope Diameter (IN) | Rope Storage (FT) | Base Length (IN) | Base Width (IN) | Overall Height (IN) | Bolt Patt Length (IN) | Bolt Patt Width (IN) | MT Bolt Diameter (IN) | Drum Diameter (IN) | Drum Width (IN) | RFQ CART |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GS275 | Steel | 275 | 1/8 | 171 | 6.61 | 2.56 | 12 | 5.03 | 1.57 | 5/16 | 1.38 | 1.60 | |
GS550 | Steel | 550 | 3/16 | 81 | 11.81 | 7.87 | 12.64 | 10.55 | 6.61 | 7/16 | 2.36 | 2.17 | |
GS1100 | Steel | 1100 | 1/4 | 46 | 11.81 | 7.87 | 12.64 | 10.55 | 6.61 | 7/16 | 2.36 | 2.17 | |
GS2200 | Steel | 2200 | 3/8 | 93 | 13.31 | 8.62 | 19.18 | 7.48 | 5.91 | 5/8 | 4.02 | 4.45 |
Disclaimer: Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
